Category
Floor Standing Speakers
ATC

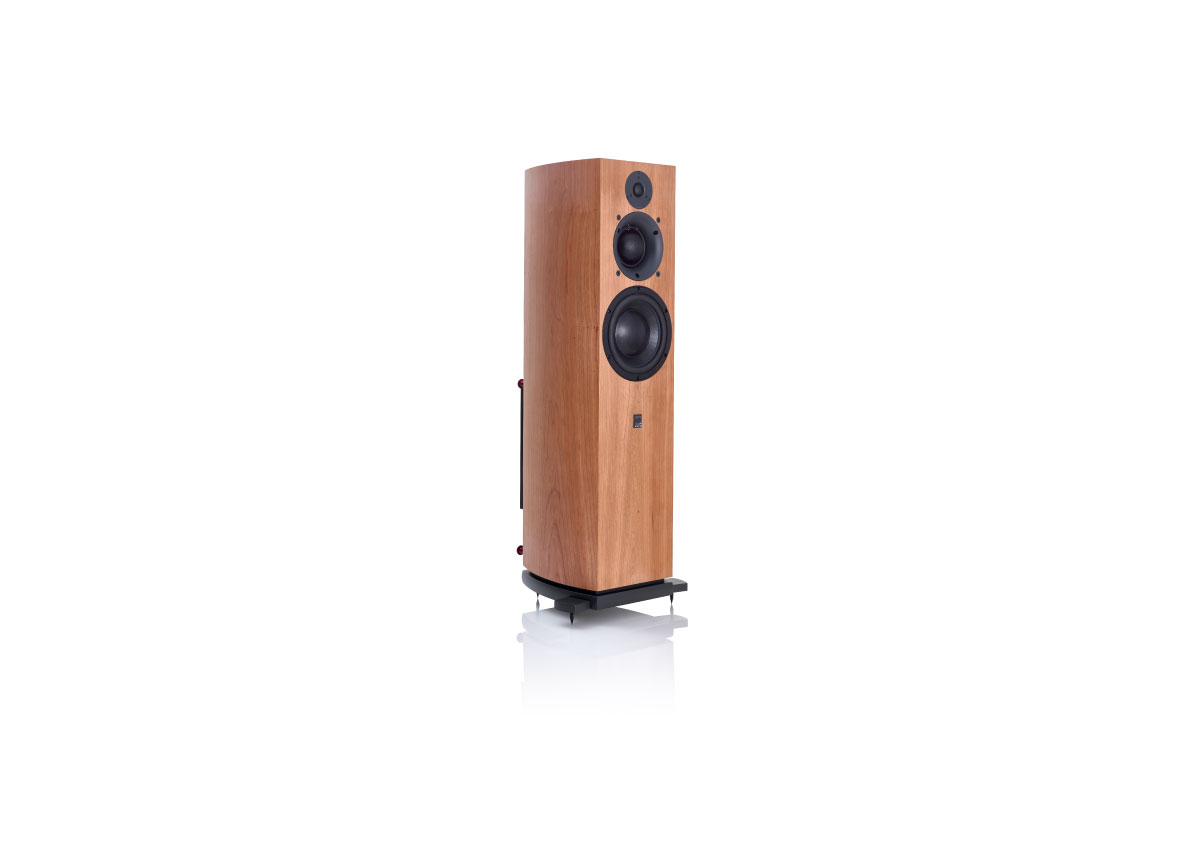

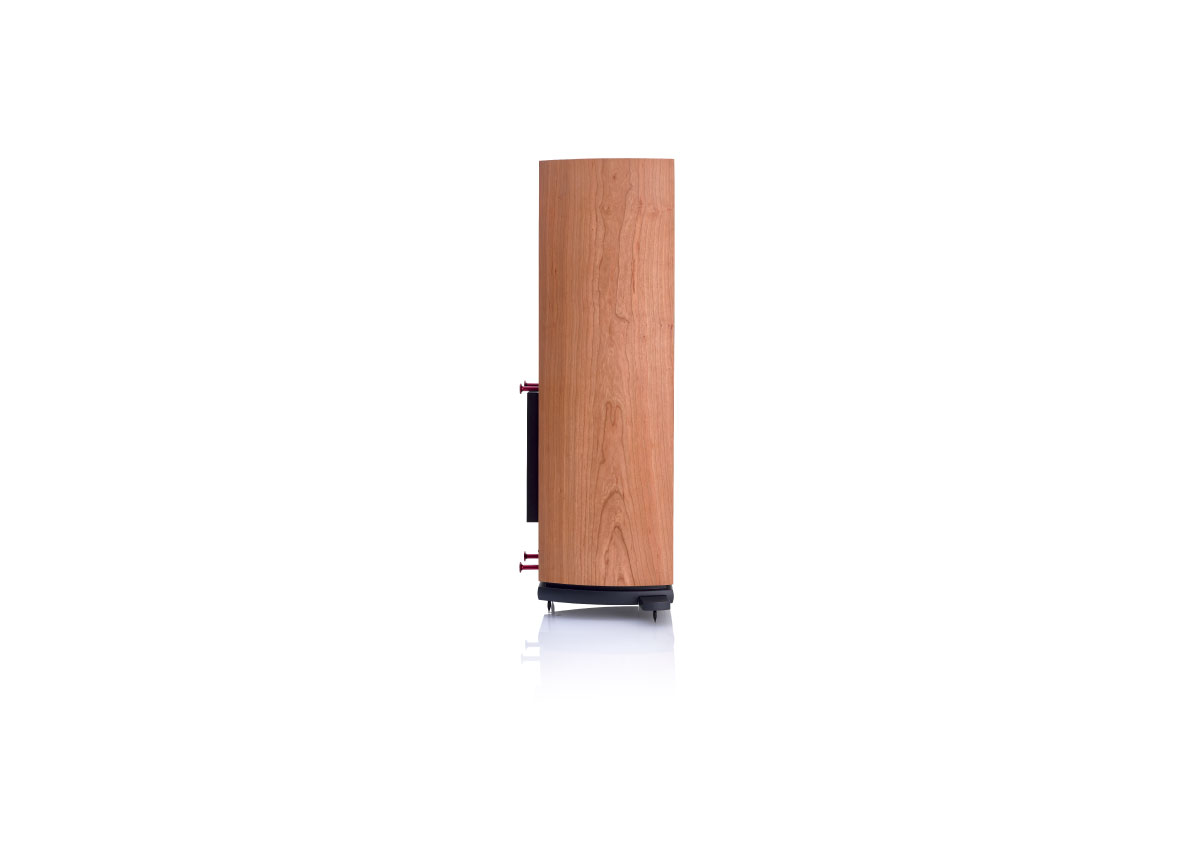

SCM40A / CHERRY
ATC
SCM40A / CHERRY
New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide. ATC Soft Dome mid-range driver. ATC 164mm short coil bass driver. All drive units incorporate massive optimised motor assemblies. On-board grounded source 242 watt Class A/B Tri-amplifier. Active crossover filters and overload protection. 6 year warranty.
SCM40A / CHERRY
New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide. ATC Soft Dome mid-range driver. ATC 164mm short coil bass driver. All drive units incorporate massive optimised motor assemblies. On-board grounded source 242 watt Class A/B Tri-amplifier. Active crossover filters and overload protection. 6 year warranty.
ราคาปกติ :
฿352,000
฿352,000
ราคาพิเศษ :
฿316,800
฿316,800
Specifications
Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Input sensitivity : 1V
Filters : 4th Order critically damped with phase compensation.
Overload Protection : Active FET momentary gain reduction.
Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
Amplifier Output: 150W LF, 60W MF, 32W HF
Cabinet Dimensions (HxWxD): 980 x 370 x 344mm (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 36kg
