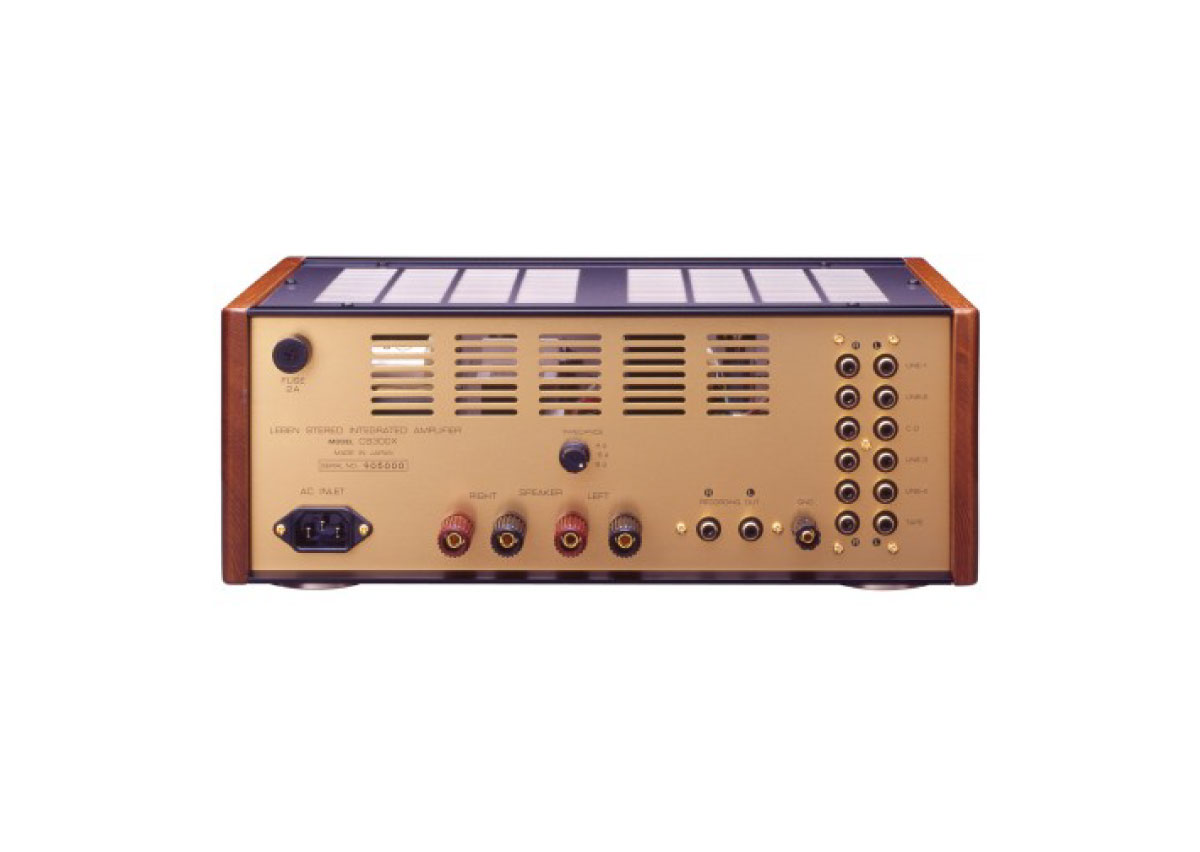

CS-300X(S) PRE-MAIN AMPLIFIER

CS-300X(S) is equipped with SOVTEK Tube EL-84 which has been welknown by audiophiles for its high sound quality against its small size.

A high input sensitivity of EL84 does not require a complicated circuit and accordingly, it can create a low distortion output signal.

• RESISTORS: Precision Industrial Grade +/-1%
• FIRST-STAGE BY-PASS CONDENSOR: An ultimate audio condensor "OS Condensor" developped by "SANYO"
• LAST-STAGE BY-PASS CONDENSOR: "Fine-Gold" by "NICHICON"
• JOINT CONDENSOR: "Metalized Polypropylene Condensor" with "Mesh-Shielding".
• NF OVERSHOOT PREVENTION CONDENSOR: Ceramic Conderser.
• CATHODE RESISTOR: 4W type.(Instead of 3W type)
• OUTPUT TRANSFORMER: Newly developped Transformer with wider range for high frequency.
• WBT type binding post.(From April/05 delivery onward)/li

Specifications

TUBES EQUIPPED EL84(SOVTEK) X 4

12AX7A(Sovtek) X 2

OUTPUT POWER 15W X 2

FREQUENCY RESPONSE 15Hz - 100KHz (-2 dB)

DISTORTION 0.7%(10W)

INPUT SENSITIVITY 600mV

INPUT IMPEDANCE 100K Ohms

OUTPUT IMPEDANCE 4/6/8 Ohms (Selectable)

POWER CONSUMPTION 82W

WEIGHT 10.5 Kgs.

DIMENSIONS 360 (W) X 270 (D) X 140 (H) mm

ATTACHMENT Detachable AC Power Cable x 1
