Dynamo 400

Product Highlights

• 8-inch inverted surround poly cone woofer
• 150 Watts (peak) amplifier
• Low-turbulence, ported design
• RCA and speaker level inputs

Specifications

Specifications are subject to change without notice

Frequency Response 30–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance RCA: 8,300 Ohms

Speaker Level: 2,000 Ohms (red to black)

Low Frequency Transducer 8” (20.3cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly. Ported.

Amplifier 75 Watts (150 peak)

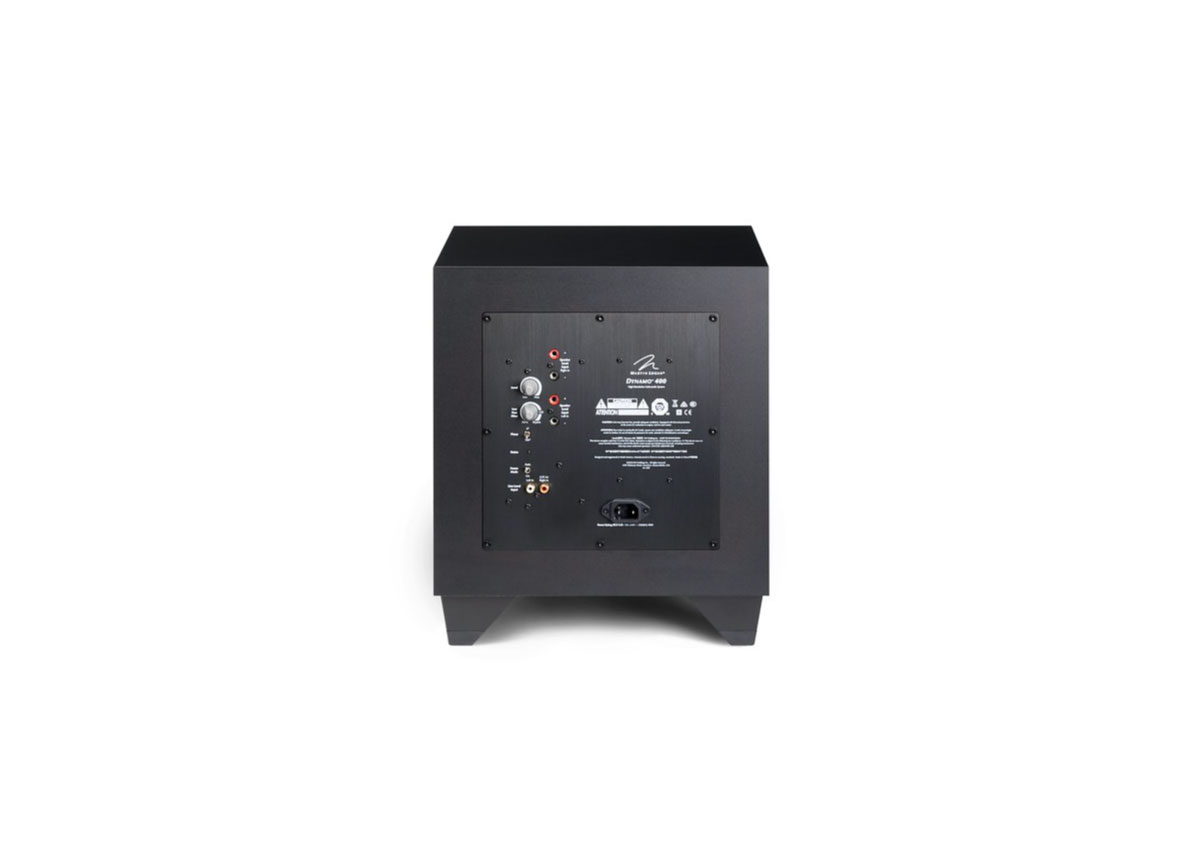

Controls (Backplate) Level: Min–Max

Low-Pass Filter: 35–120Hz, Bypass

Phase: 0°, 180°

Power Mode: On, Auto

Inputs Line Level: Left, Right/LFE

Speaker Level: Left and Right via banana jacks

Power Draw Typical: 20W, Max: 90W, Idle: 4W, Standby: 0.5W

Feet Rubber

Weight 28.5 lbs. (12.9 kg)

Dimensions 15.2" x 13.3 " x 13.7 "

(38.5 cm x 33.7cm x 34.8 cm)

Finish Satin Black
