Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.

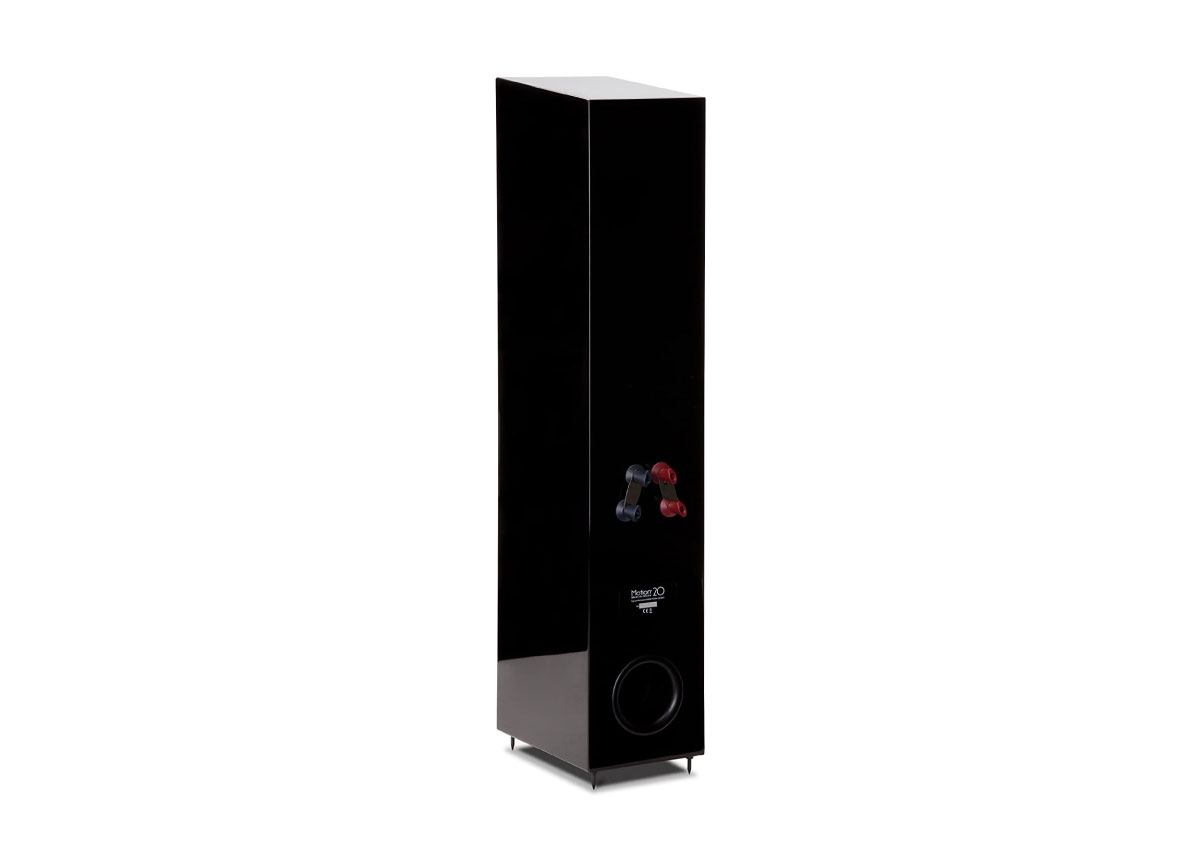

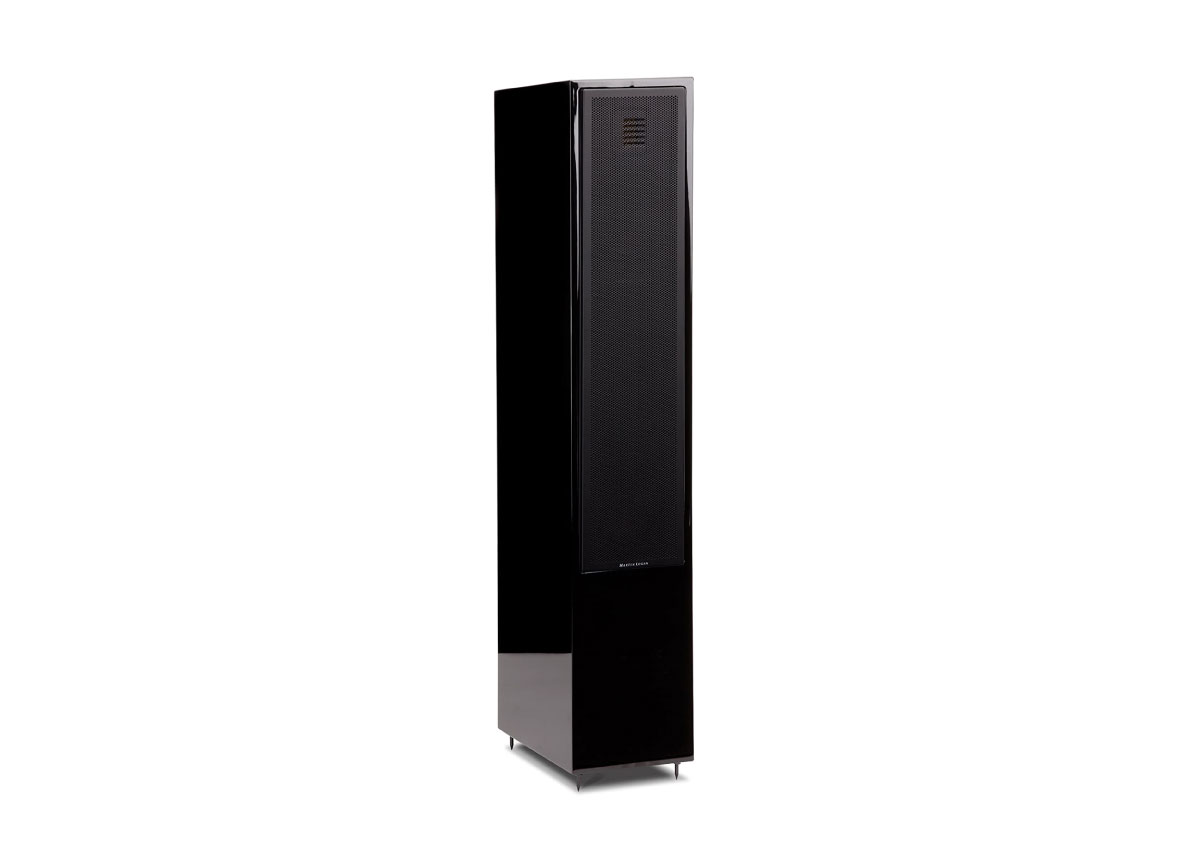

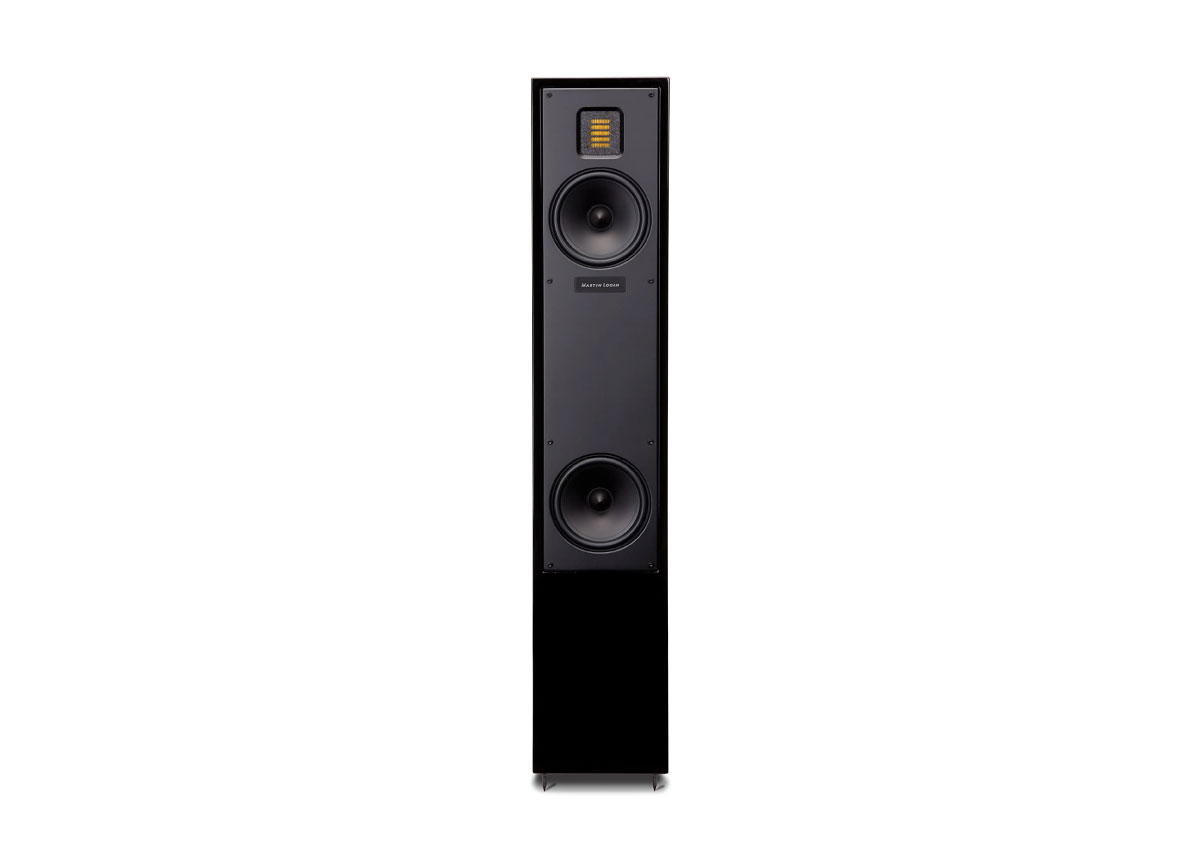

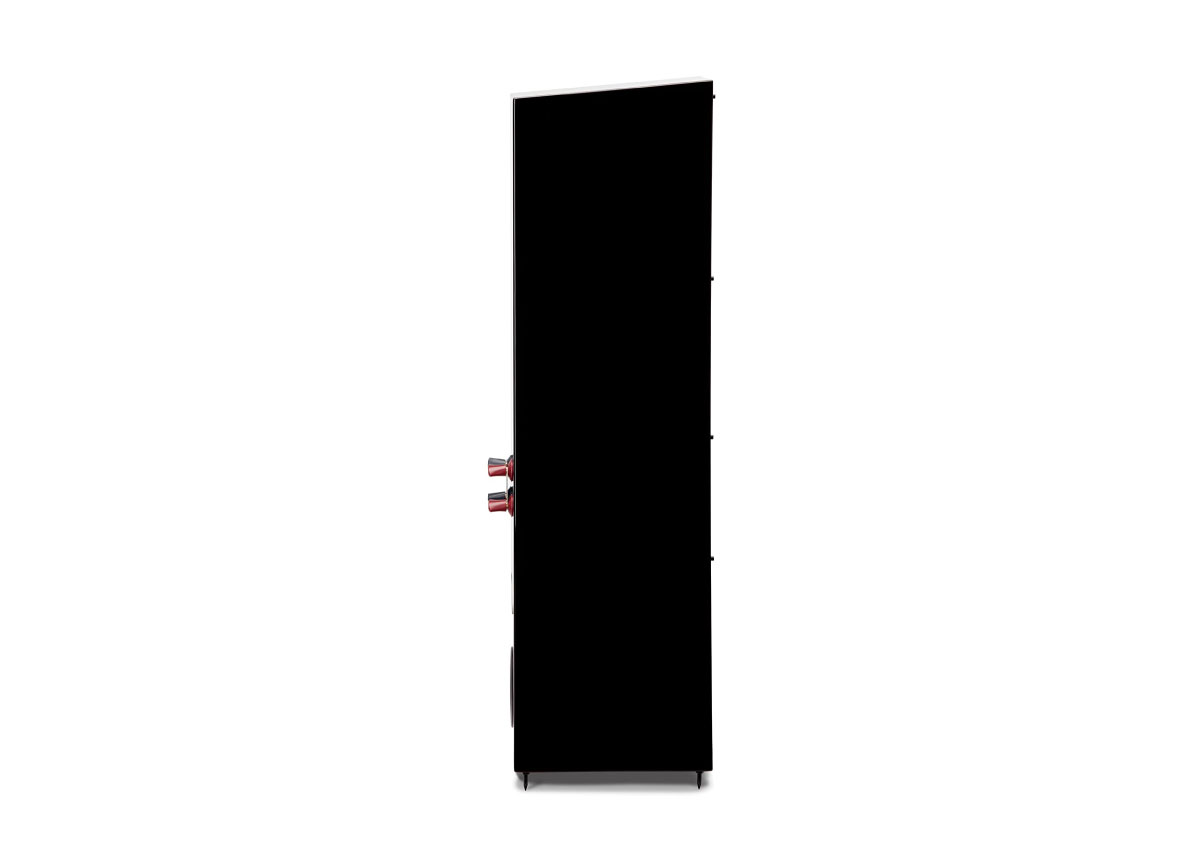

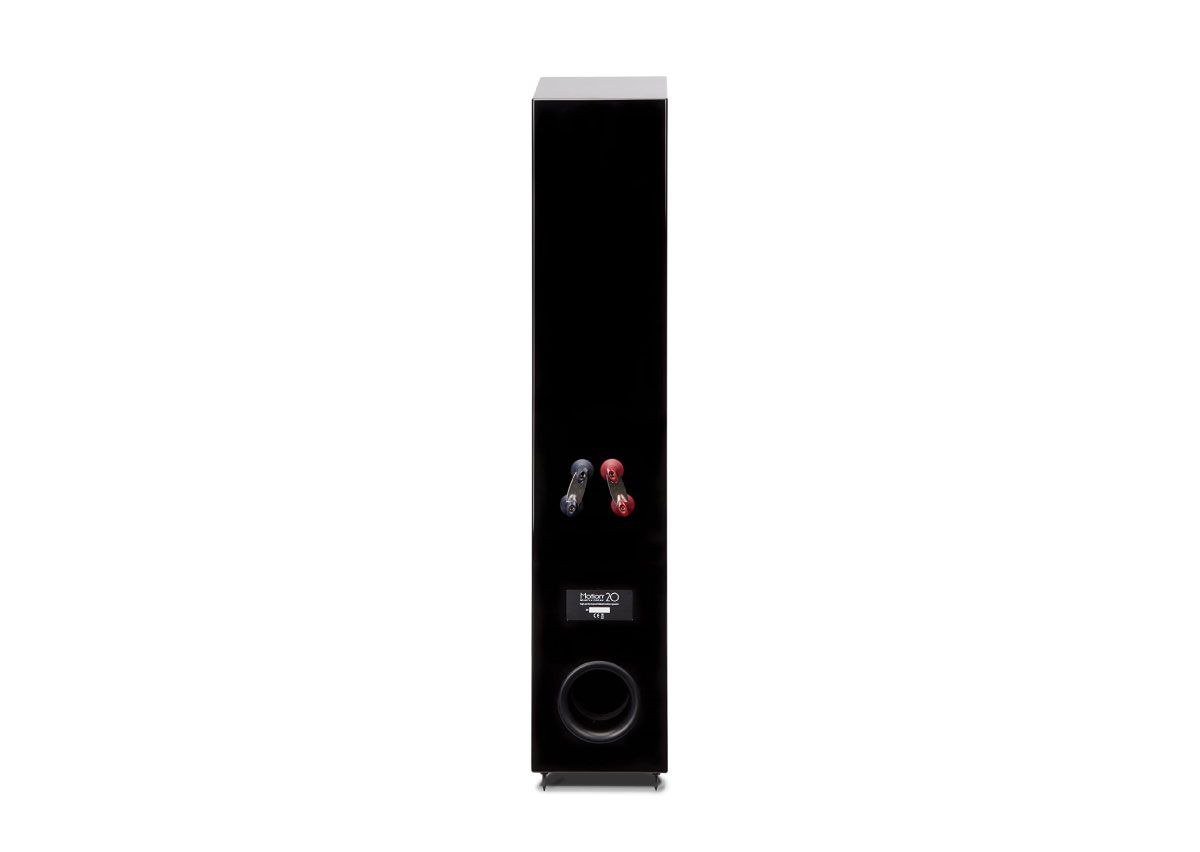

The Motion 20 is a breathtaking visual statement regardless of its compact dimensions. Dual 5-1/2" aluminum cone woofers are paired with a rear-firing bass port for extra punch in the low frequencies. With the addition of our Folded Motion tweeter it's a design that delivers solid low-frequency reinforcement, superb sound dispersion and precise, highly dynamic high frequencies.

Folded Motion® Tweeters

The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Specifications

Specifications are subject to change without notice

Frequency Response 46–25,000 Hz ±3dB

Recommended Amplifier Power 20—200 watts per channel

Horizontal Dispersion 80°

Vertical Dispersion 80°

Sensitivity 90 db/2.83 volts/meter

Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency 500 & 2,600 Hz

High Frequency Transducer 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.

Components Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel

Inputs Custom 5-way bi-wire tool-less binding posts

Weight 37 lbs. (16.8 kg)

Dimensions 36.6" x 6.8" x 11.7 "

(92.9cm x 17.3cm x 29.7cm)
